Fiber Laser Cutting Machines
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet
Fiber Laser Cutting Machine for Metal Sheet

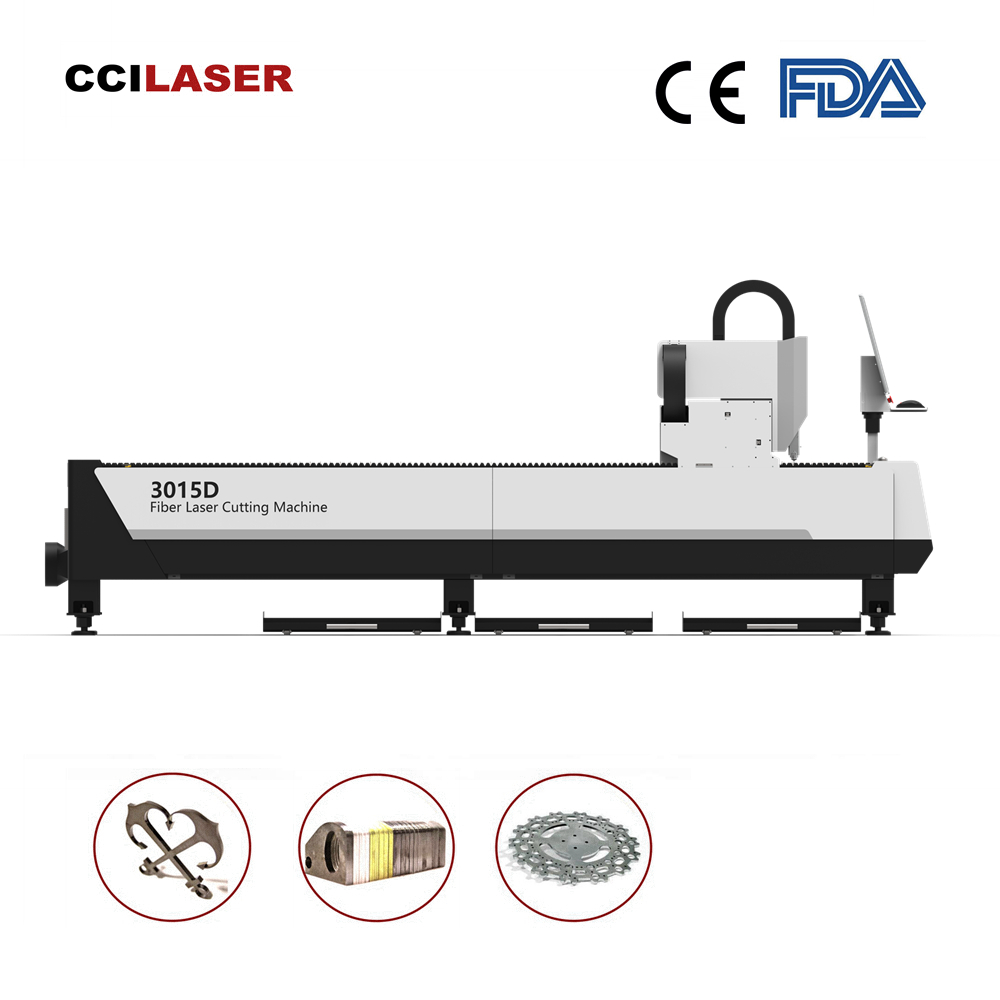

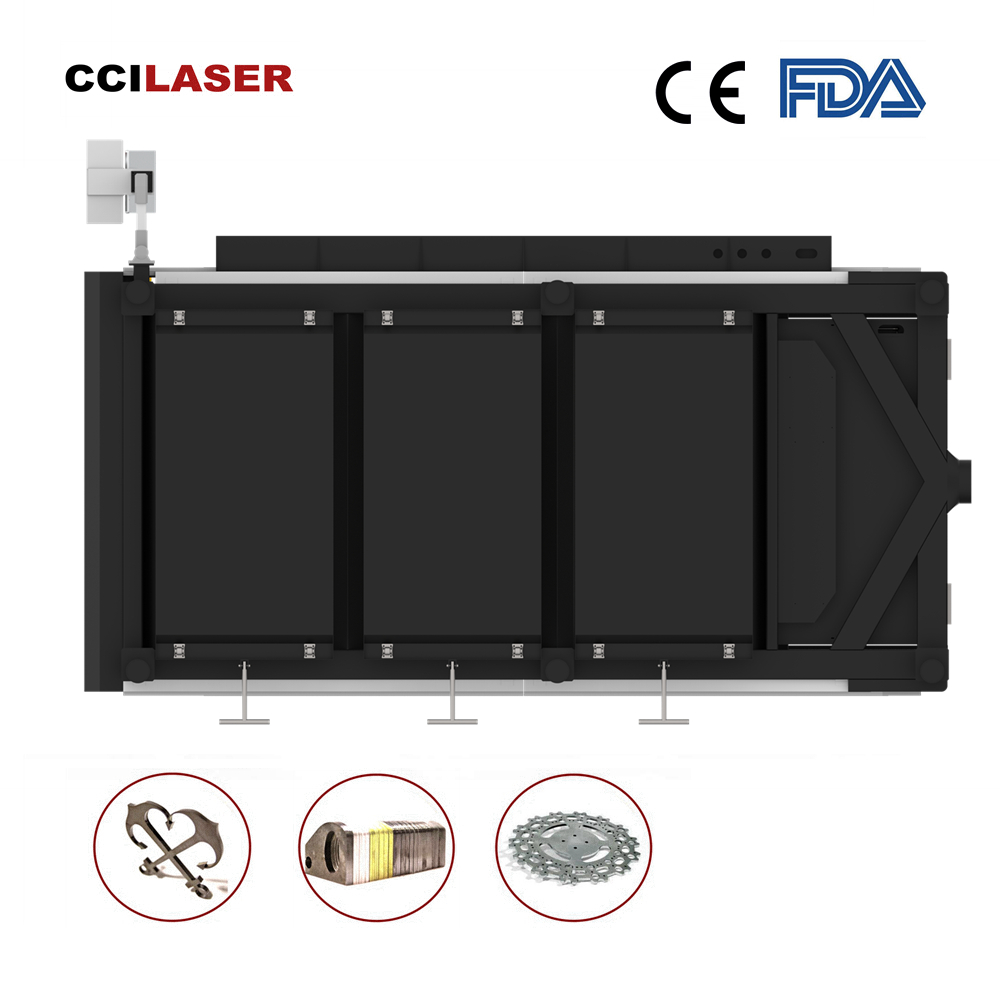

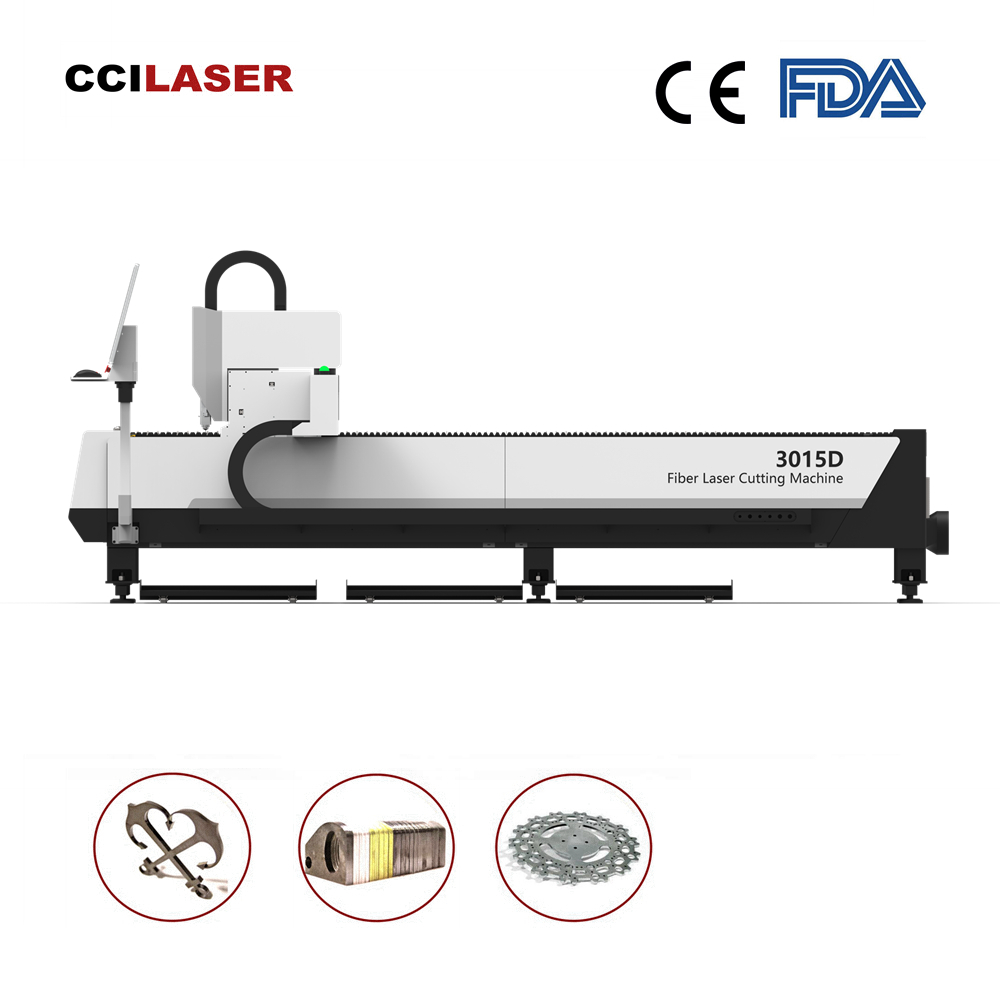

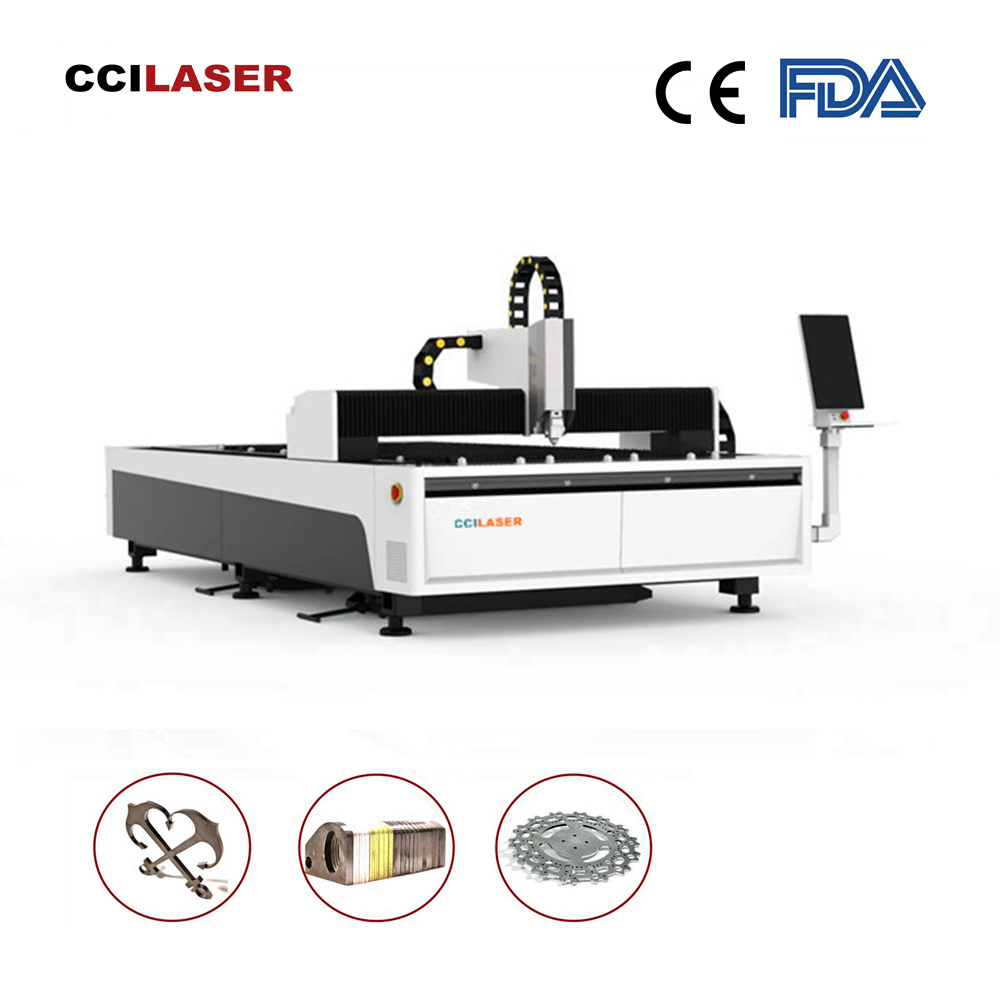

Model: FLC-3015F

DESCRIPTION

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Mounted touch screen monitor and remote control for convenient interfacing.



Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.


SPECIFICATIONS

   Position Accuracy

   ±0.01mm/1000mm

   Re-position Accuracy

   ±0.03mm/1000mm

   Cutting Area

   3000*1500mm/4000*2000mm/   6000*2000mm

   Fiber   Power

   China made RAYCUS   500W-1000W

   Graphic Format Support

   CAD, DXF and so on

   Motor   type

   AC Servo motors

   Transmission System

   Gantry Double Drive   Structure

   Material platform

   Saw Tooth Blade cutting   platform for metal cutting

   Venting Attachments

   Air exhaust fans with   venting pipe

   Machine Dimensions

   4340*2300*1550mm

   Net   Weight

   3500KG


WORKING CONDITION REQUIREMENT

   Electric

   Power Supply: 380V 50Hz/ 220V 60Hz

   The   stability of 3 phase voltage: +5%

   Output   voltage adjusting rate: less 2%

   Assisted Air

   Compressed air:   Purification and dry;

   O2: High purity;

   N2:  Purity no less than 99.9%;

   Metal Sheet

   homogeneous material;

   Neat & clean surface.

   Compressed Air

   Screw compressor (more   than 12Kg) with oil water separator and dryer.

   Air   storage tank Capacity: 1m3

   Water

   Purified water


MAIN COMPONENTS

0.8.31 Laser Cutting Main Parts.jpg

CUTTING  EFFECTS
