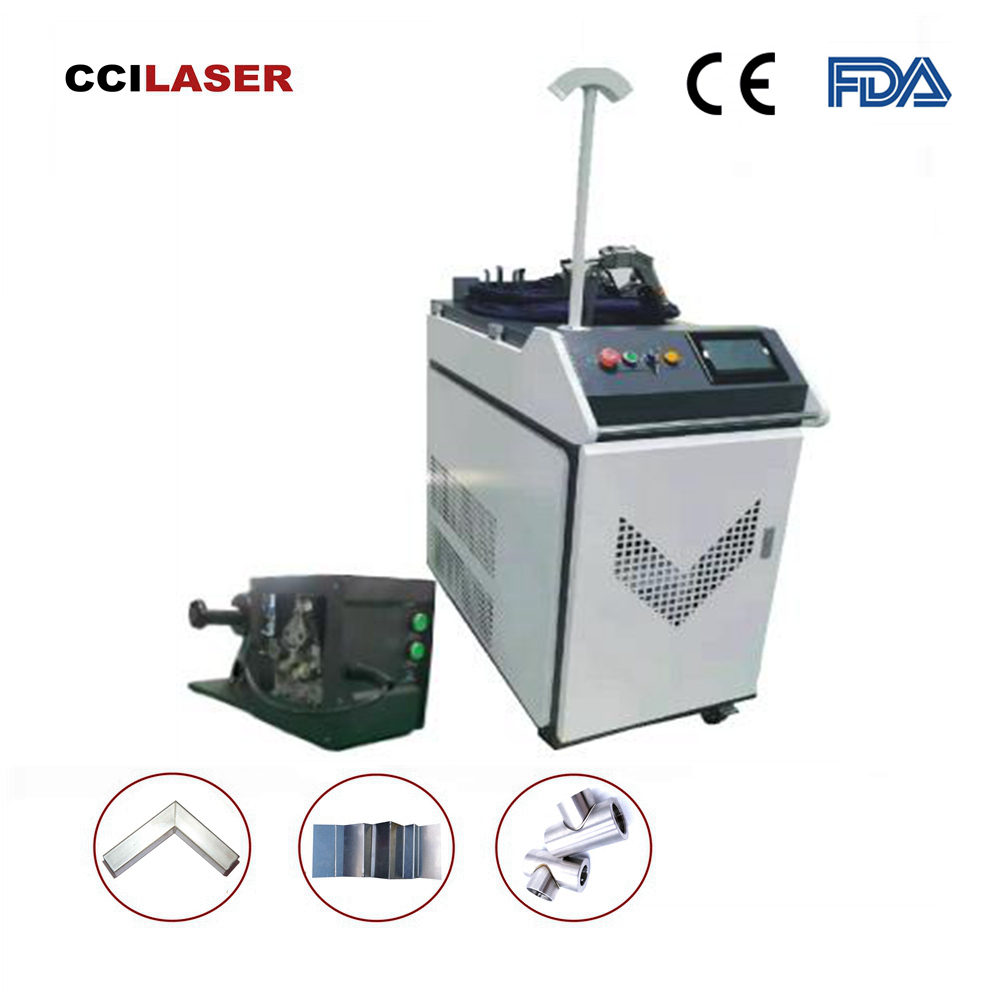

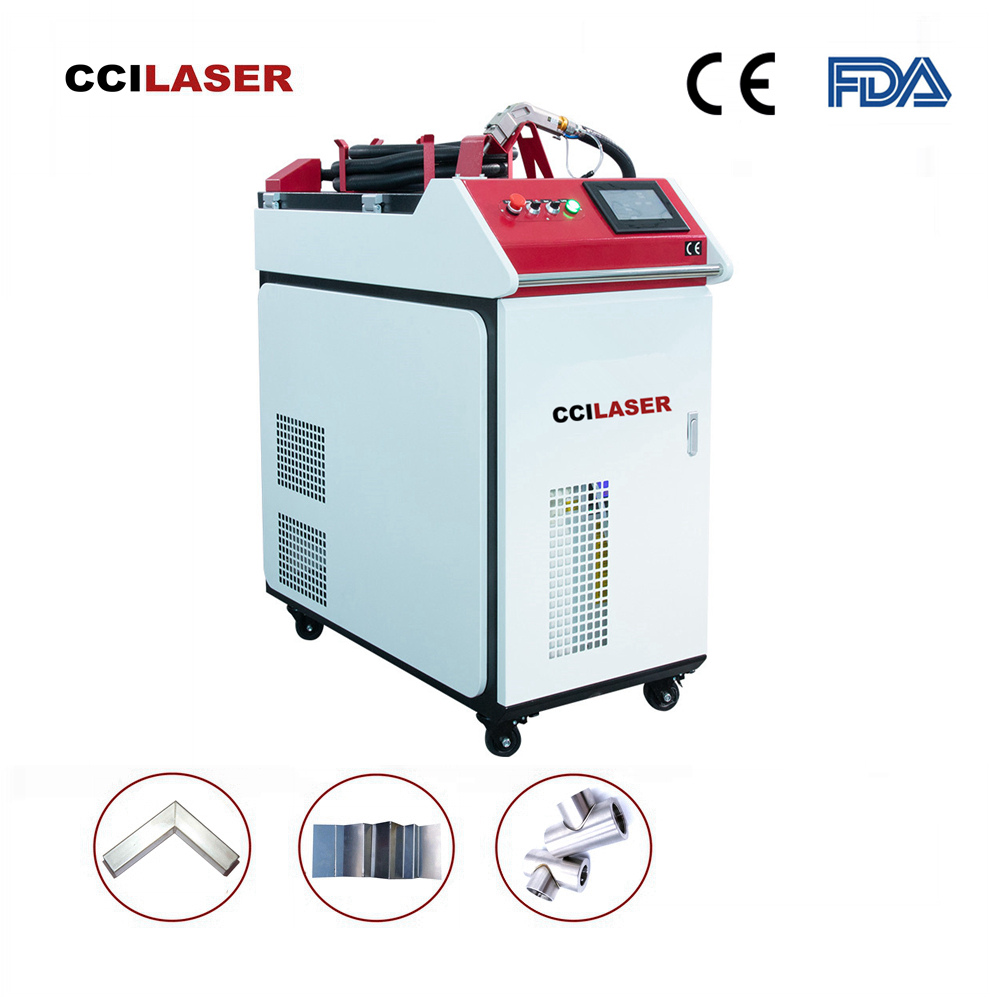

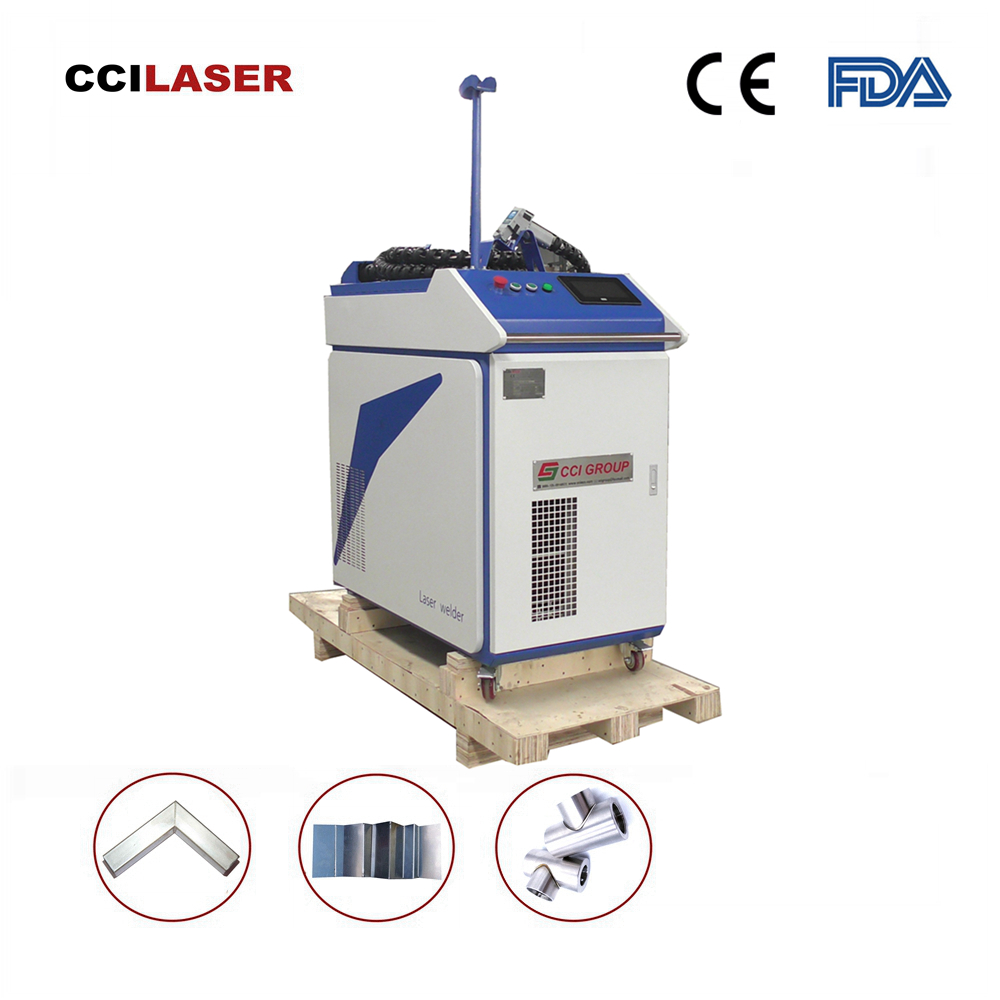

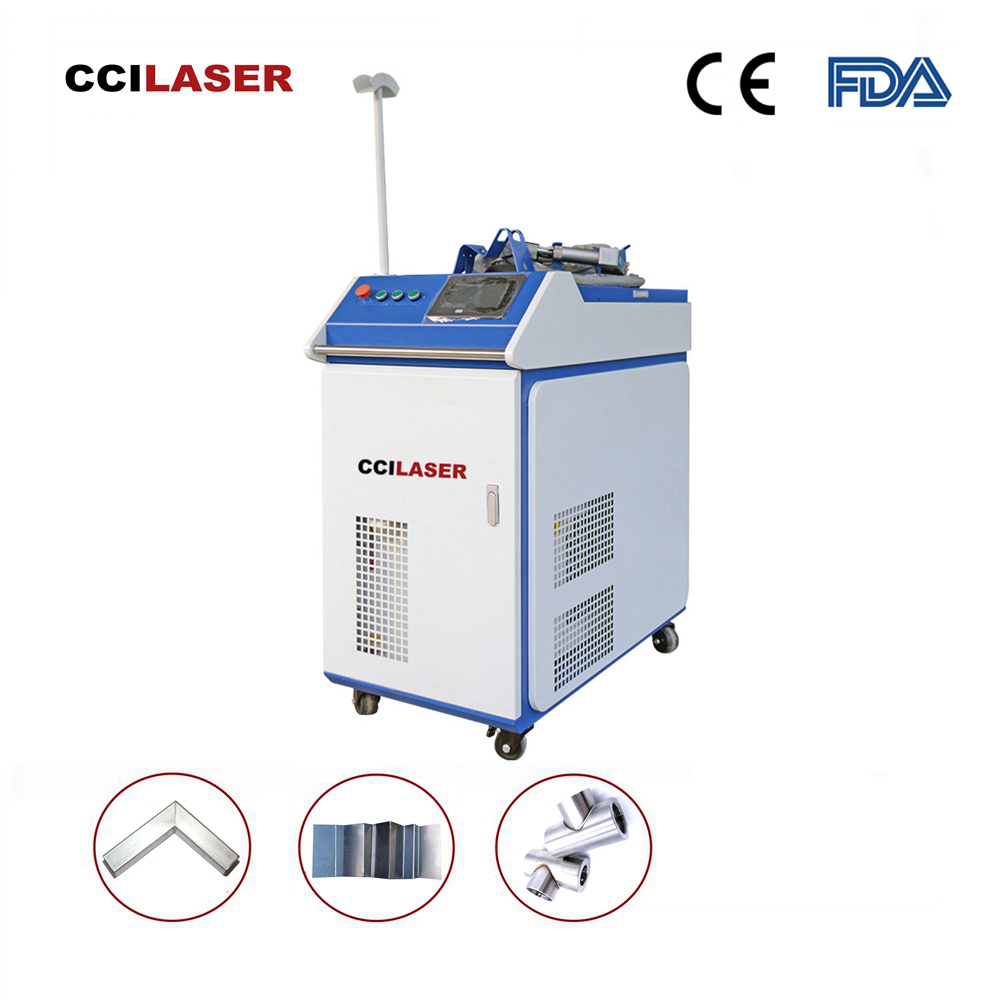

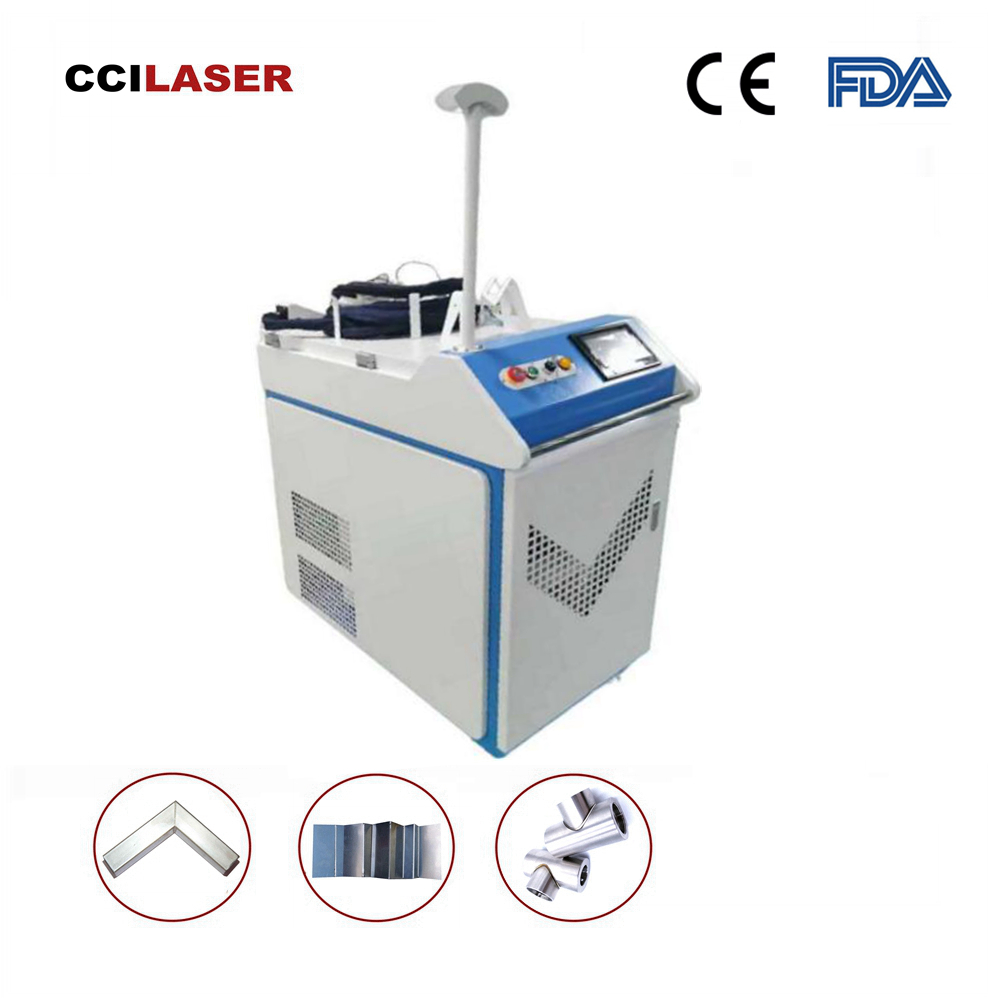

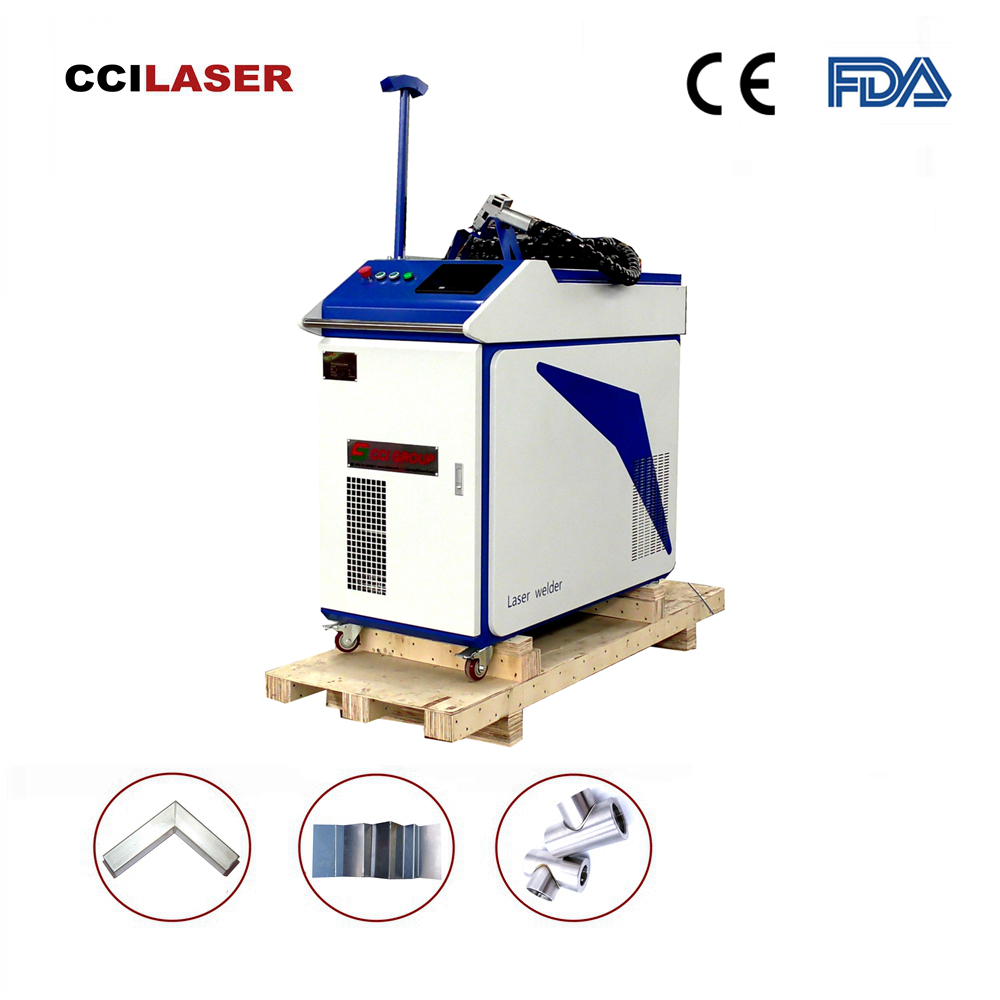

Fiber Laser Welding Machine Hand Held Type 1000W 1500W 2000W
Fiber Laser Welding Machine Hand Held Type 1000W 1500W 2000W
Fiber Laser Welding Machine Hand Held Type 1000W 1500W 2000W
Fiber Laser Welding Machine Hand Held Type 1000W 1500W 2000W
Fiber Laser Welding Machine Hand Held Type 1000W 1500W 2000W

Machine Feature:

Ø  Laser welding machine is one kind of processing method of welding materials with high energy density laser beam as heating source. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables.

Ø  In recent years, due to the continuous development of materials, technology and fabrication process, laser welding has been widely used in the welding of plastics, metals, etc. Besides, the laser welding machine will replace traditional welding methods ( such as argon arc welding) in automobiles, sensors, electronics industry.

Ø  Hand-held laser welding machine install hand-held welding head, which is similar with argon arc welding machine. It is flexible and simple operation, suitable for small batches orders. The laser welding machine can be widely used in cabinet kitchen and bathroom, stair elevator, shelf, Oven, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex and irregular welding process.




Application Case:

Material

Thickness

Welding   Effects

Material

Thickness

Welding   Effects

Carbon Steel

3mm

Stainless Steel

1mm

6mm


6mm

Aluminum

1mm

Copper

1mm

3mm


2mm

Galvanized Sheet

2mm

3mm


Main parts and brand as follows

   Fiber Laser

   IPG/ JPT/ MAX/ RAYCUS (U.S/ China made)

   Laser Cutting Head

   QLASER/ WSX (China made)

   Electric Parts

   SCHNEIDER (France made)

   CNC System

   QLASER/ WSX (China made)

   Water   Chilling Unit

   S&A/ TONGFEI (China made)


TECHNICAL  ADVANTAGES

Ø   Fast welding speed. 2-3 times faster than traditional welding process.

     Less welding consumables, long life, safer and more environmentally friendly.

     Weld seams are smooth and beautiful, no secondary treatment, saving time and cost.

Ø  Welding work piece has little thermal influence and no deformation.

Ø  The beam can be adjusted 0.5-6mm by swing the laser head, which makes up for the disadvantage of the laser welding spot,

     expands the tolerance range of the machined parts and the weld   width, and obtains better weld formation.

     Fast welding speed. 2-3 times faster than traditional welding process.

   Less welding consumables, long life, safer and more environmentally friendly.


SPECIFICATIONS

   No.

   Technology Parameters   Name

   Technology Parameters

1

   Laser Power Rate

   1000W/ 1500W/ 2000W

2

   Power Supply

   220V 50Hz

3

   Fiber Length

   10m/15m

4

   Working Type

   Continuous / modulation

5

   Welding Speed

   0-120mm/min

6

   Water Cooling Chiller

   Industrial constant   temperature

7

   Working Environment   Temperature

   15~35 ℃

8

   Working Environment   Humidity

   < 70%   No condensation

9

   Welding Thickness

   0.5-3mm

10

   Welding Gap Requirement

   ≤0.5mm


MACHINE  FUNCTION  COMPARISON

No.

Item

Traditional Welding Machine

Laser Welding Machine

1

Heat input

Very High

Low

2

Work Piece Deformation

Big

Small

3

Bond Strength with Base Metal

Normal

Perfect

4

Follow-up Work

Polishing

No need or few polishing

5

Welding speed

Normal

Fast

6

Applicable material

Stainless steel/ Carbon steel/   Galvanized sheet

7

Consumables

More consumables

Less consumables

8

Operation difficulty

complex

Easy

9

Operator safety

Unsafe

Safety

10

Environmental protection impact

Non Ecology

Ecology

11

Welding fault tolerance

Good

Good

12

Swing welding

no

yes

13

Beam width adjustment

no

yes

14

Welding quality

Poor

Perfect
