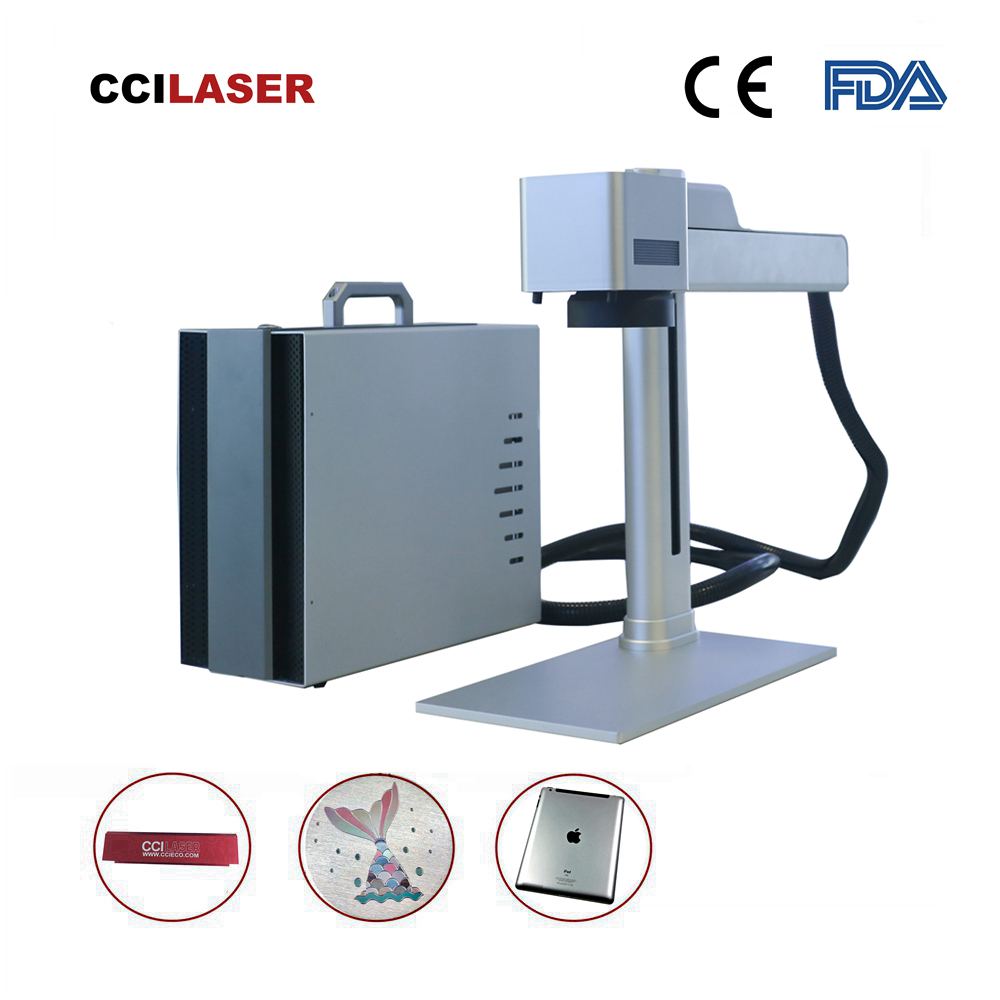

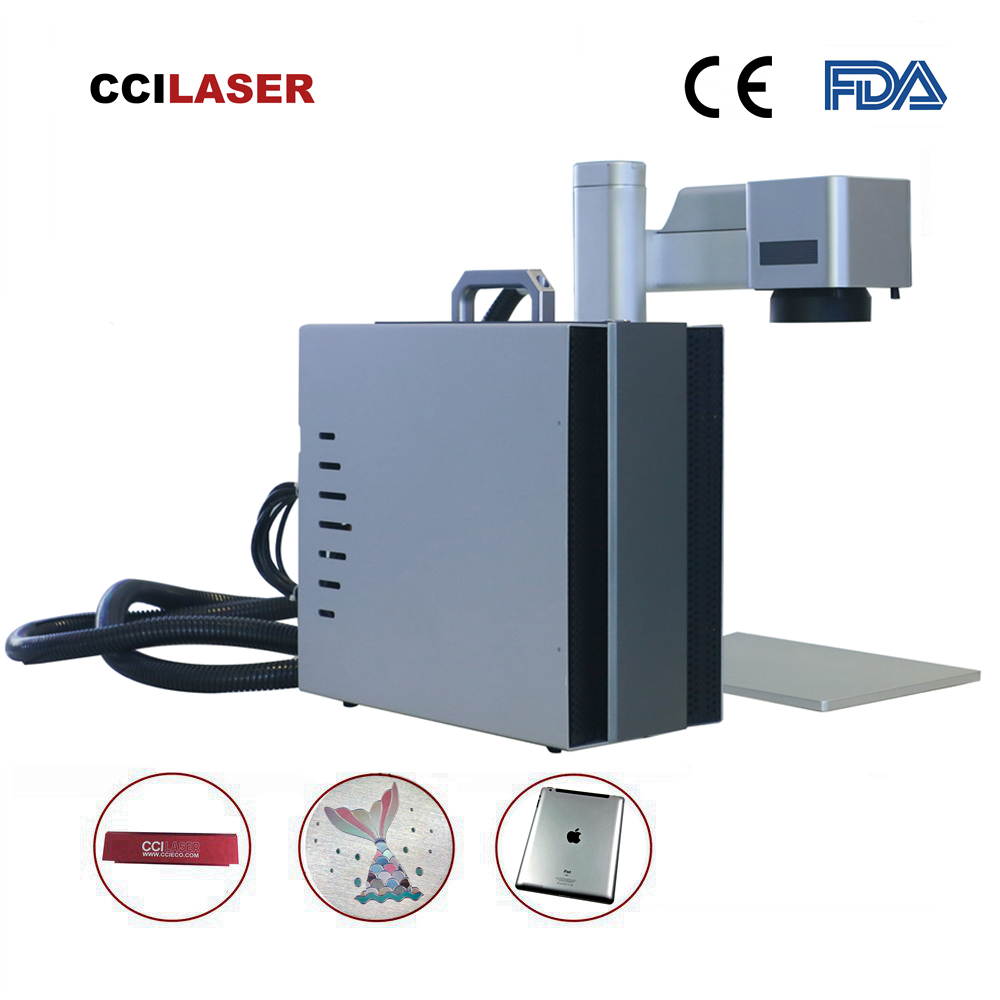

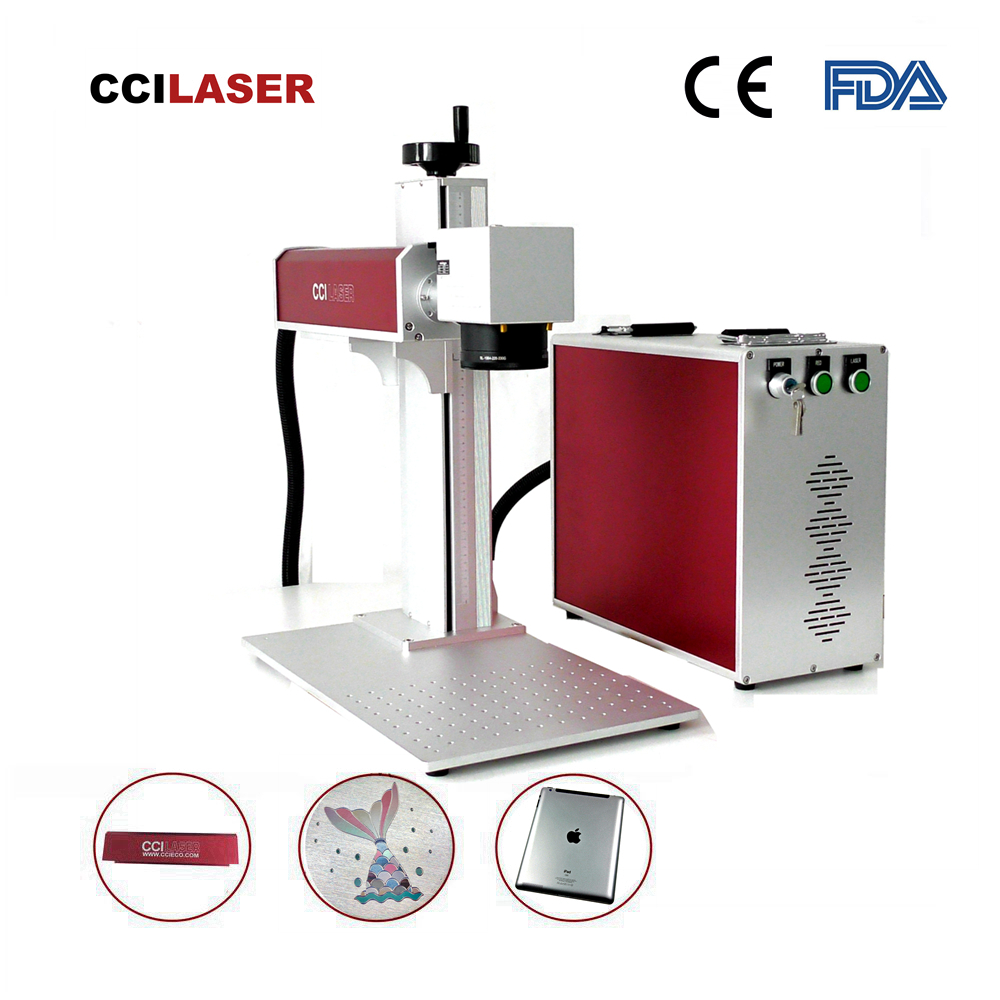

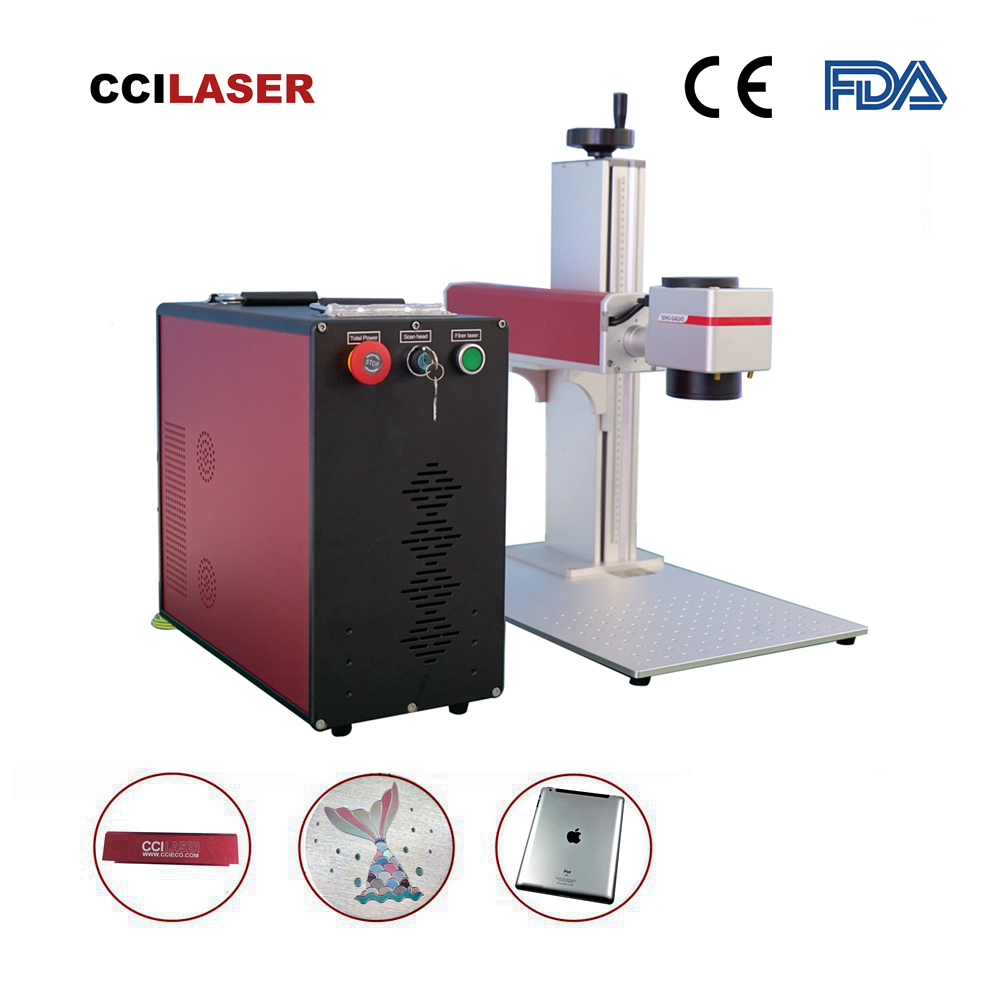

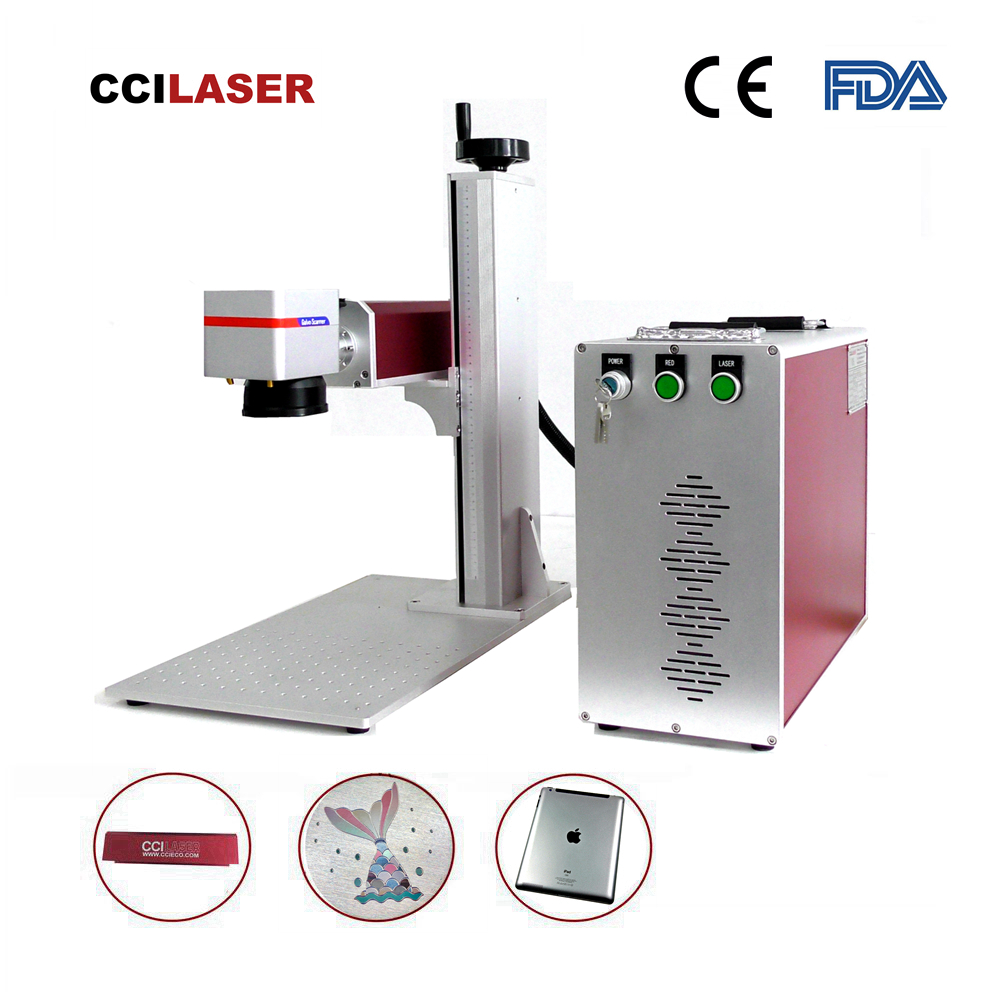

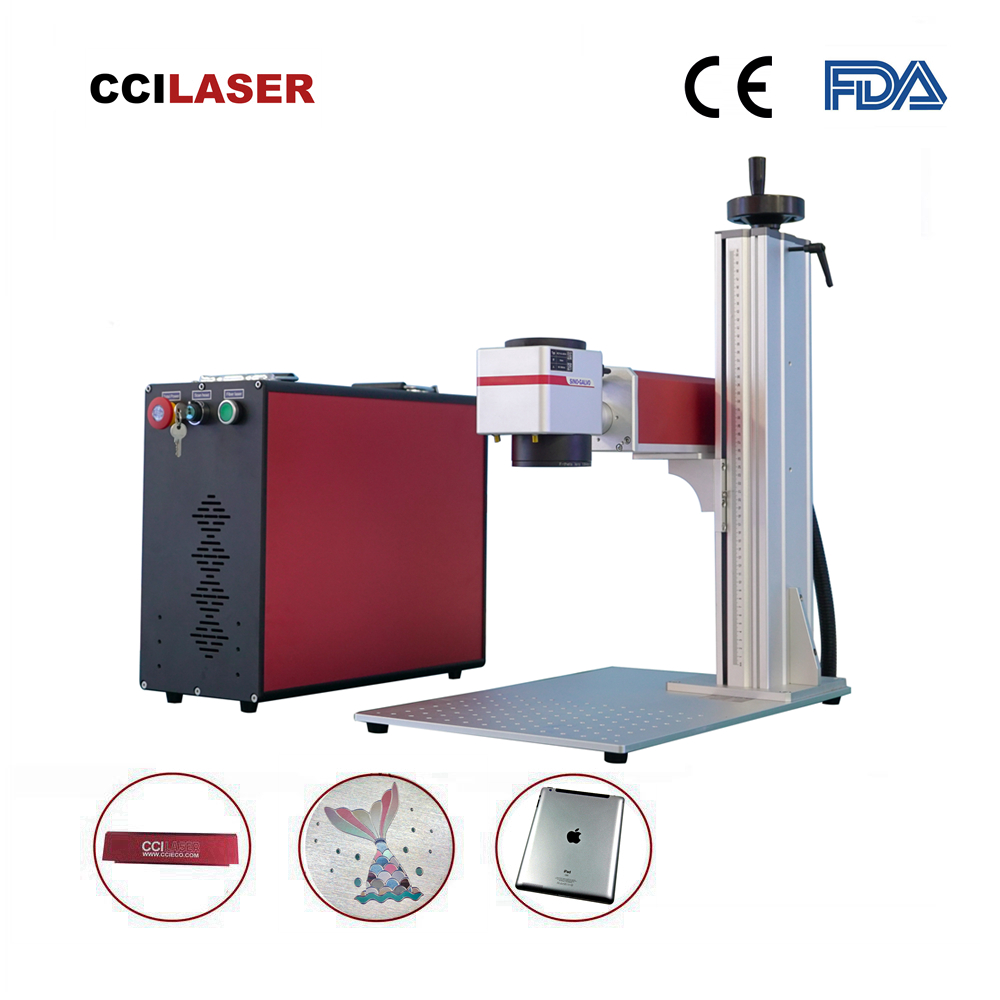

The CCILASER FM Fiber Laser Marking Machine comes standard with 20W JPT power with optional upgrades. Process stainless steel and carbon steel and most of metal material and etc.

Application Industry:

Suitable for electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.

It is artistic, clear and permanent identification mark.

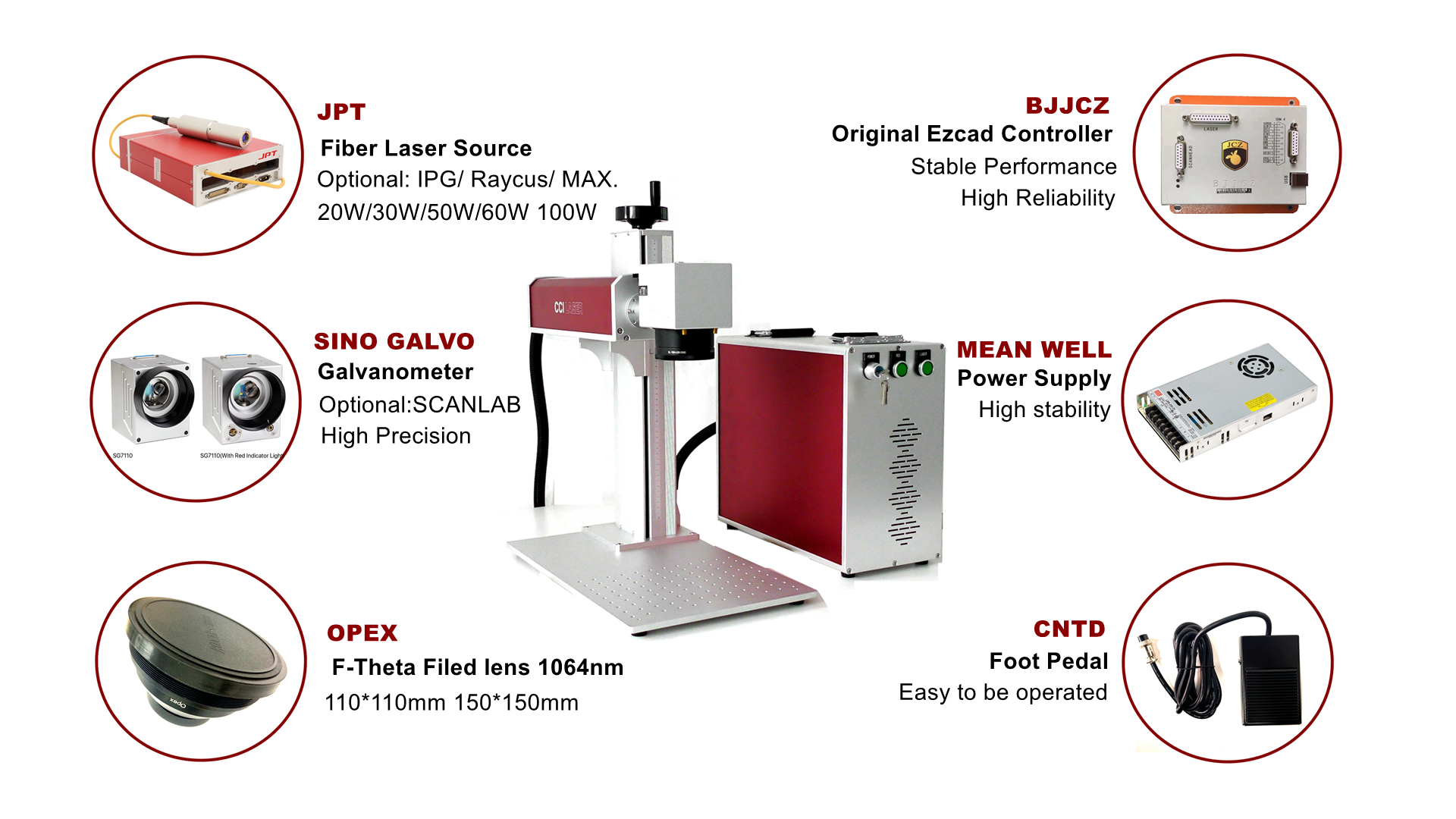

MAIN PARTS AND BRAND AS FOLLOWS

0.Laser Marking Machine.jpg


DESCRIPTION

Ytterbium fiber laser marking machine includes Q-switch pulse output laser beam. It is ideal for permanently marking and engraving raw metal applications as well as industrial polymers. The improved beam quality coupled with 10x more focused beam diameter (compared to CO2) makes this fiber marker ideal for applications that demand extreme precision.

Laser marking machine of the high degree of automation, which can realize one-click electric adjust focal length, greatly improving the production efficiency. Independent research and development focus functions, focal length can be set according to the work piece thickness for automatic calibration, without manual operation.


SPECIFICATIONS

   Model

   FM-20D/ FM-30D/   FM-50D

   Fiber   Power Source

   20W 30W 50W

   Wave   Length

   1064nm

   Fiber   Marking Area

   110*110mm/ 150*150mm/   200*200mm/ 300*300mm

   Work   Platform

   Easy Guide X/Y Adjustable   Precision Platform

   Chuck   Rotary for Cylindrical objects

   Option

   Fiber   Optic Eye Protection

   1 Pair

   Min.   Character

   0.15mm

   Min.   Line Width

   0.01mm

   Repeat   Precision

   ±0.002

   Laser   Lifetime

   More than 100000 Hours

   Power   Supply

   220V 50Hz/ 110V 60Hz

     Warranty

   2 (Two) Years Warranty   Covers All Parts


Laser Marking Machine Working Case

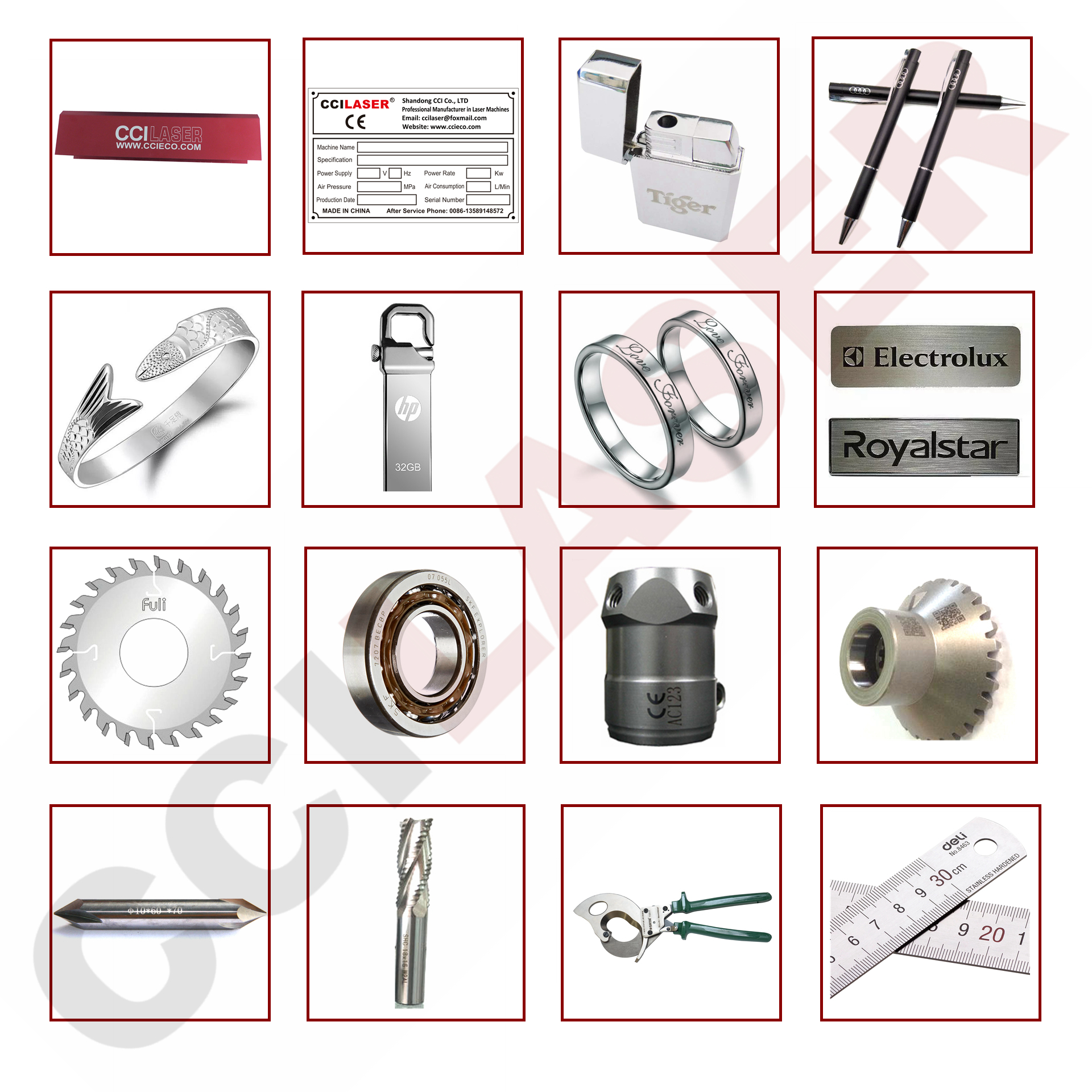

Fiber laser marking machine is used to mark on both metal and nonmetallic materials. The specific applicable materials are as follows:

A. Metal materials: Stainless steel, carbon steel copper, aluminum alloy,etc.

Case: hardware tools, medical equipment, plumbing equipment, hard alloy, measuring tools, machine parts, instruments, kitchen appliances, gear bearings, valve, vehicle accessories, pens, thermos cups, auto and motorcycle accessories, etc.

000.0.Laser Marking Machine_CCILASER.jpg

B. Nonmetallic materials: synthetic materials, rubber, leather, hard plastic, the material with black film,etc.

Case: Concrete, Capacitors, inductors, printed circuit boards, integrated circuits, computer keyboards, electrical plug-in cards, electrical appliances, upvc profile, etc.

000.00.Laser Marking Machine_CCILASER.jpg

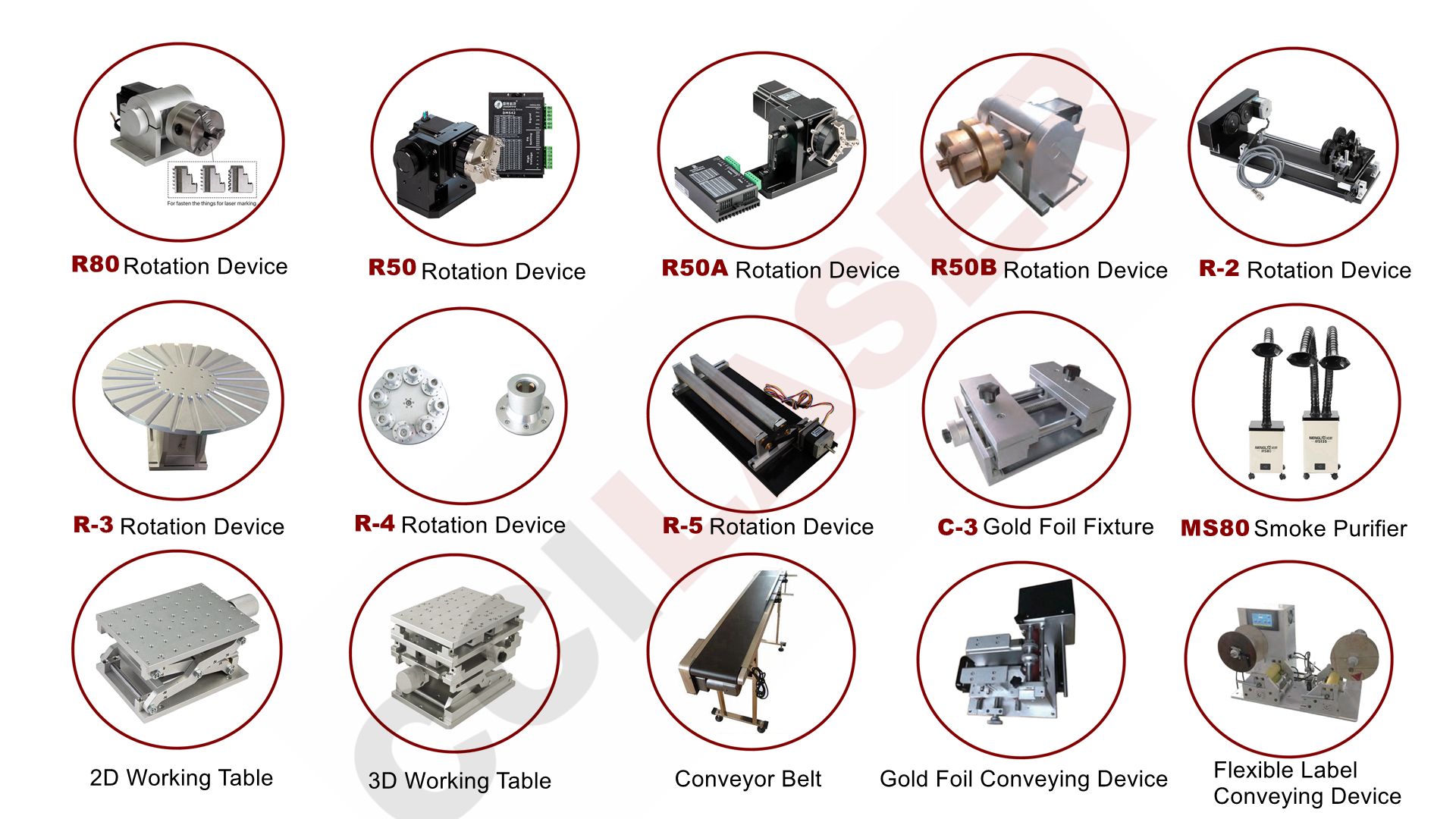

Optional Components

00.0.Laser Marking Machine.jpg

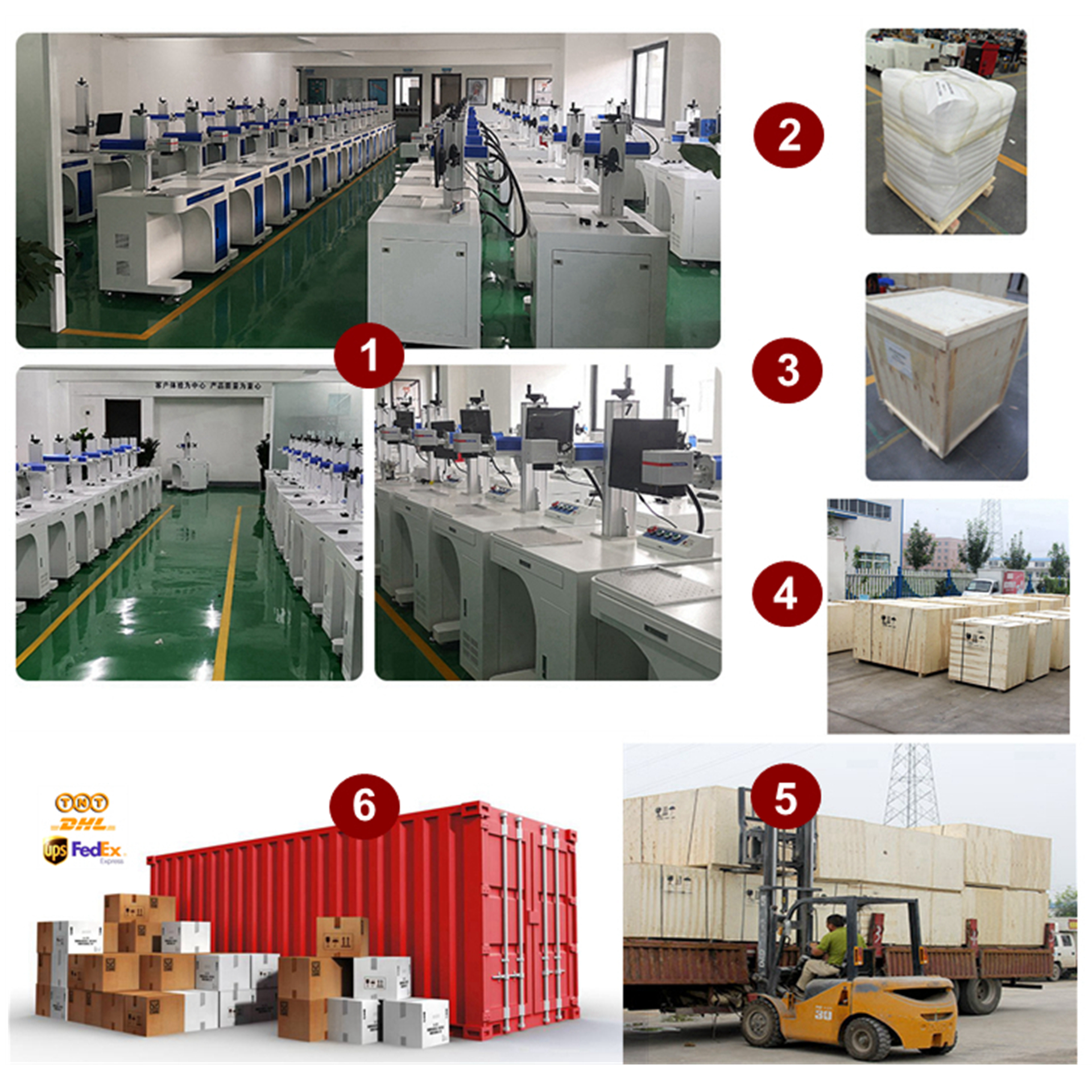

Delivery Procedure

000.000.Laser Marking Machine.jpg
