Re-position Accuracy

±0.01mm/1000mm

Cutting Area

600*600mm/ customized size

Fiber Power

JPT QCW-150/1500-L-A

Graphic Format Support

CAD, DXF and so on

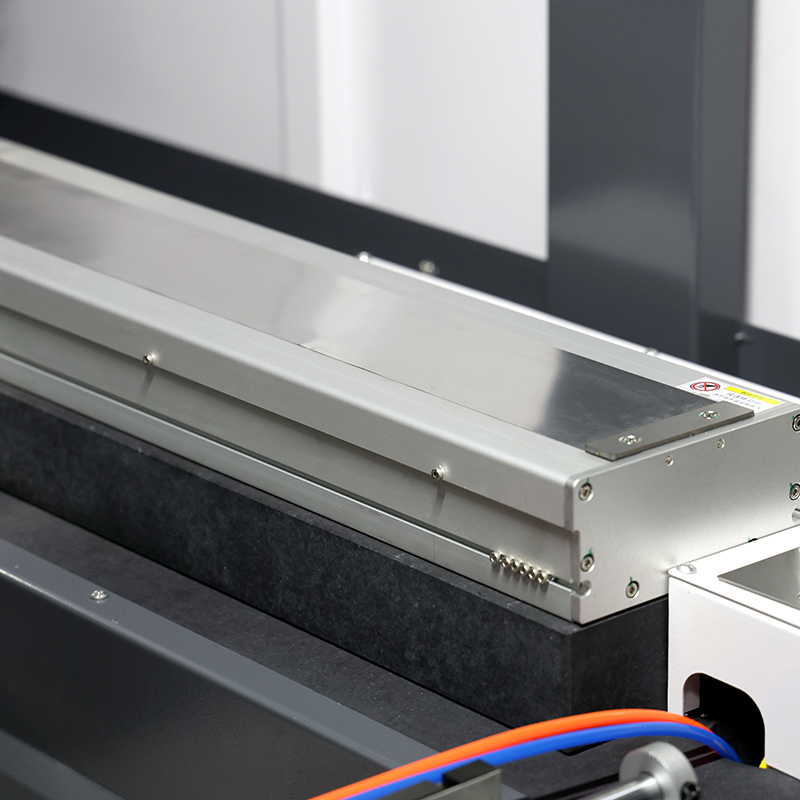

Motor type

AC Servo motors

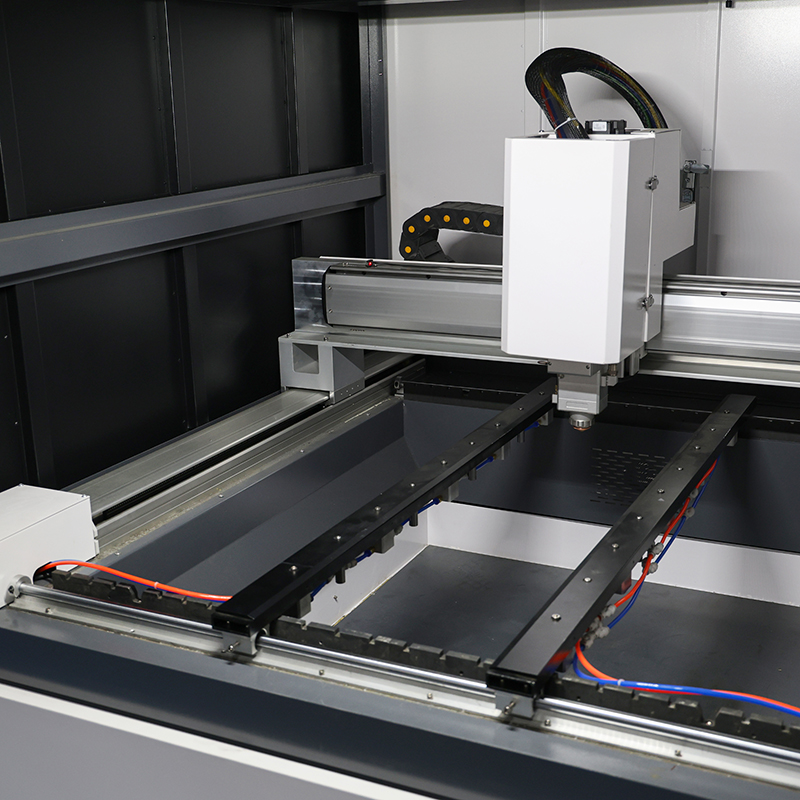

Worktable

Marble countertop worktable Structure

Cooling method

Air cooling

Venting   Attachments

Air exhaust fans with venting pipe

Machine Dimensions

1520*1430*2130mm

Net Weight

1000KG

   The stability of voltage: +5%

   Output voltage adjusting rate: less 2%

   Assisted Air

   Compressed air:   Purification and dry；

   O2: High purity;

   N2:  Purity no less than 99.9%;

   Metal Sheet

   homogeneous material；

   Neat & clean surface.

   Compressed Air

   Screw compressor (more  than 12Kg) with oil water separator and dryer.

   Air storage tank Capacity: 1m3

   Water

   Purified water (If need)
